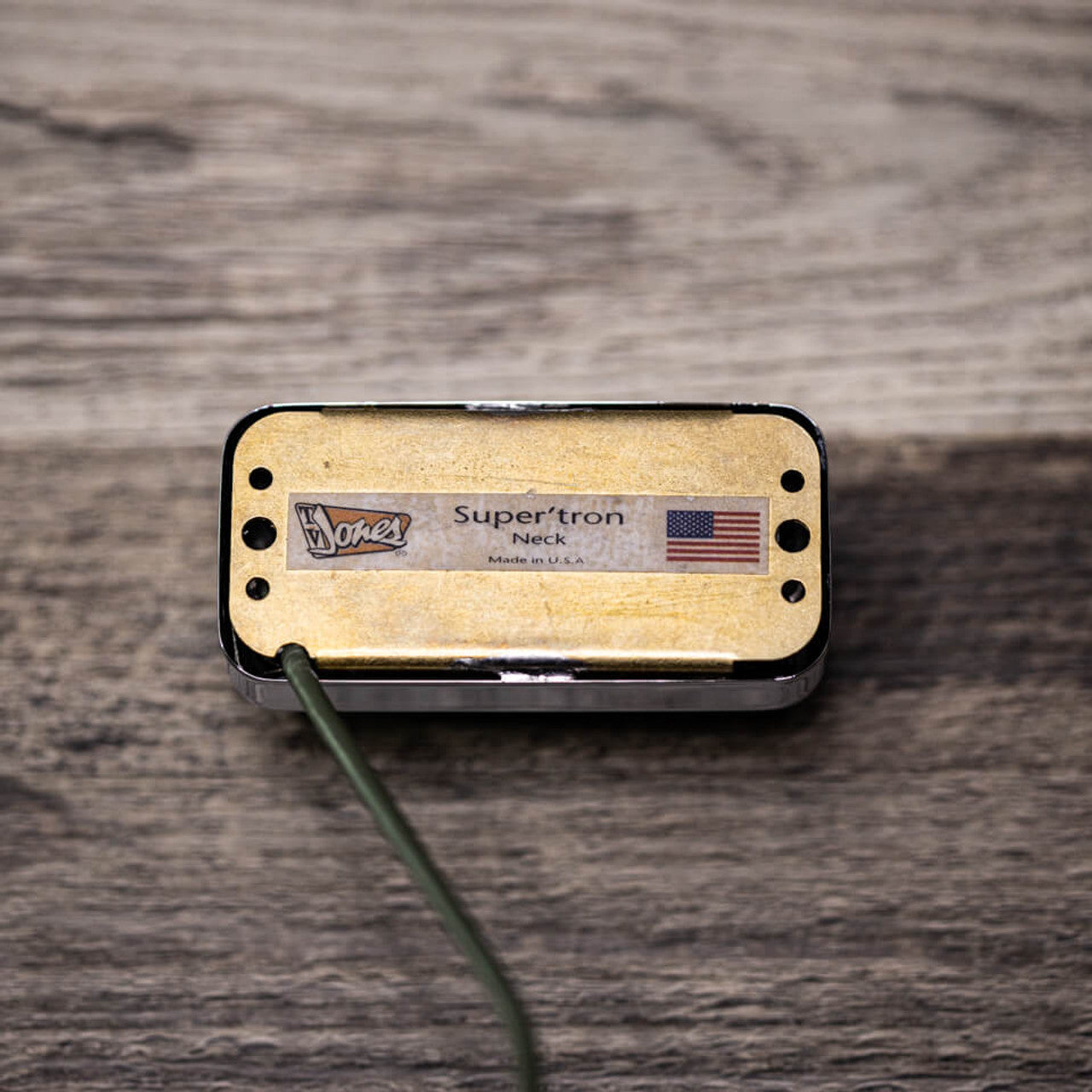

TV Jones Super'Tron Neck Humbucker Pickup - Nickel - New

TV Jones Super'Tron Neck Humbucker Pickup - Nickel - New

In brief: Humbucking Neck Pickup with 4.0k DC Resistance and 1.8H Inductance - Nickel

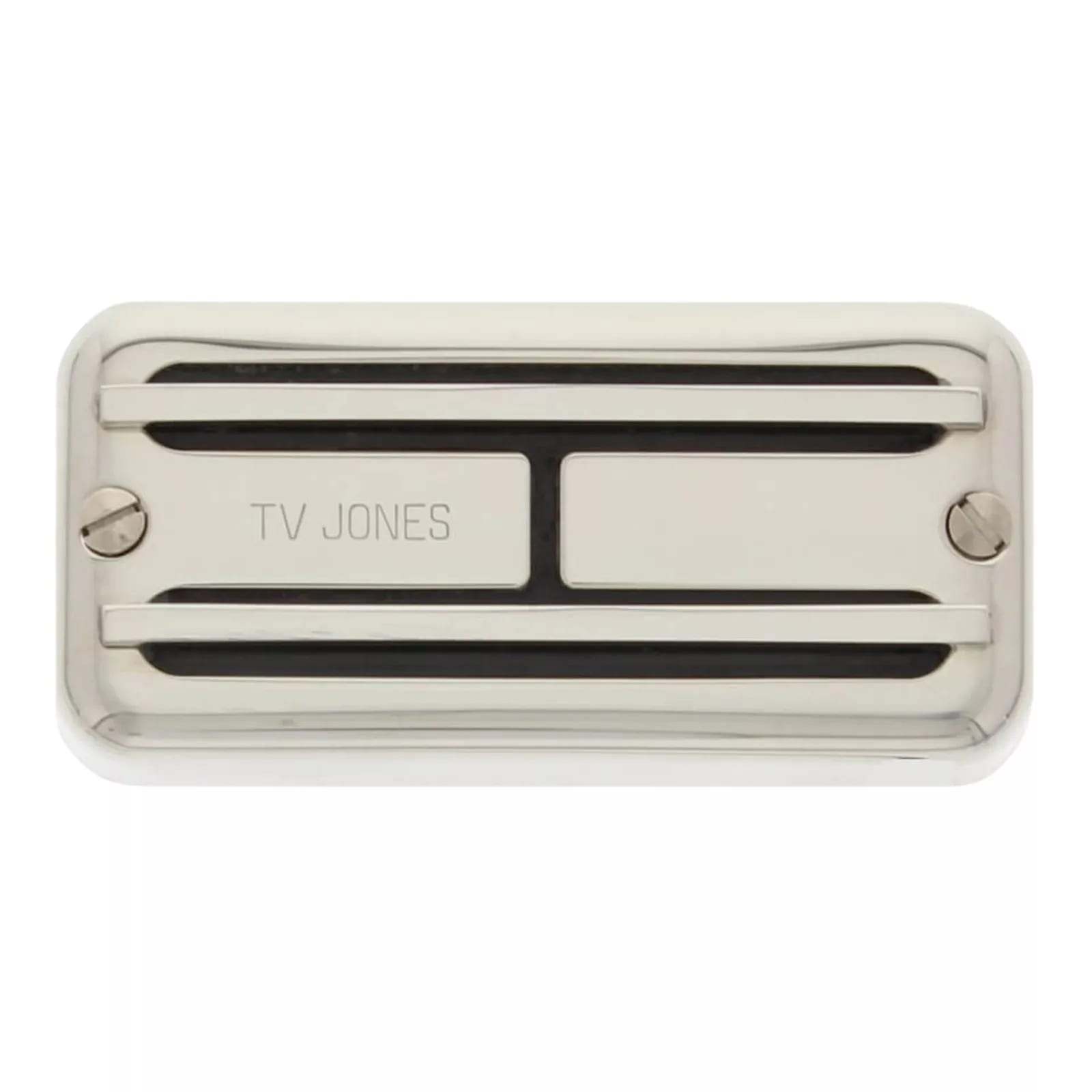

The TV Jones Super'Tron is a replica of the original early 1960's prototype design. It is basically a TV Classic with steel blades instead of pole screws and the resulting tone retains classic Filter'tron clarity, but with a bold and full broadband punch.

Tone/Characteristics

The steel blades used in the Super'Tron provide a larger magnetized surface area producing greater inductance. While the DC Resistance is the same as the TV Classic, you will notice a little more output and body with a slightly more accentuated lower-mid range. Warmer and less aggressive than the mid 1960's Gretsch Super'Trons (which had a bunch of thin laminated steel blades instead of one piece of steel). Great choice for finger picking, jazz, punk, blues... it has been said that this design in the neck position was loved by Chet Atkins (according to Paul Yandell).

Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 4.8k / Inductance - 2.64H

Neck: DCR - 4.0k / Inductance - 1.81H

Installation:

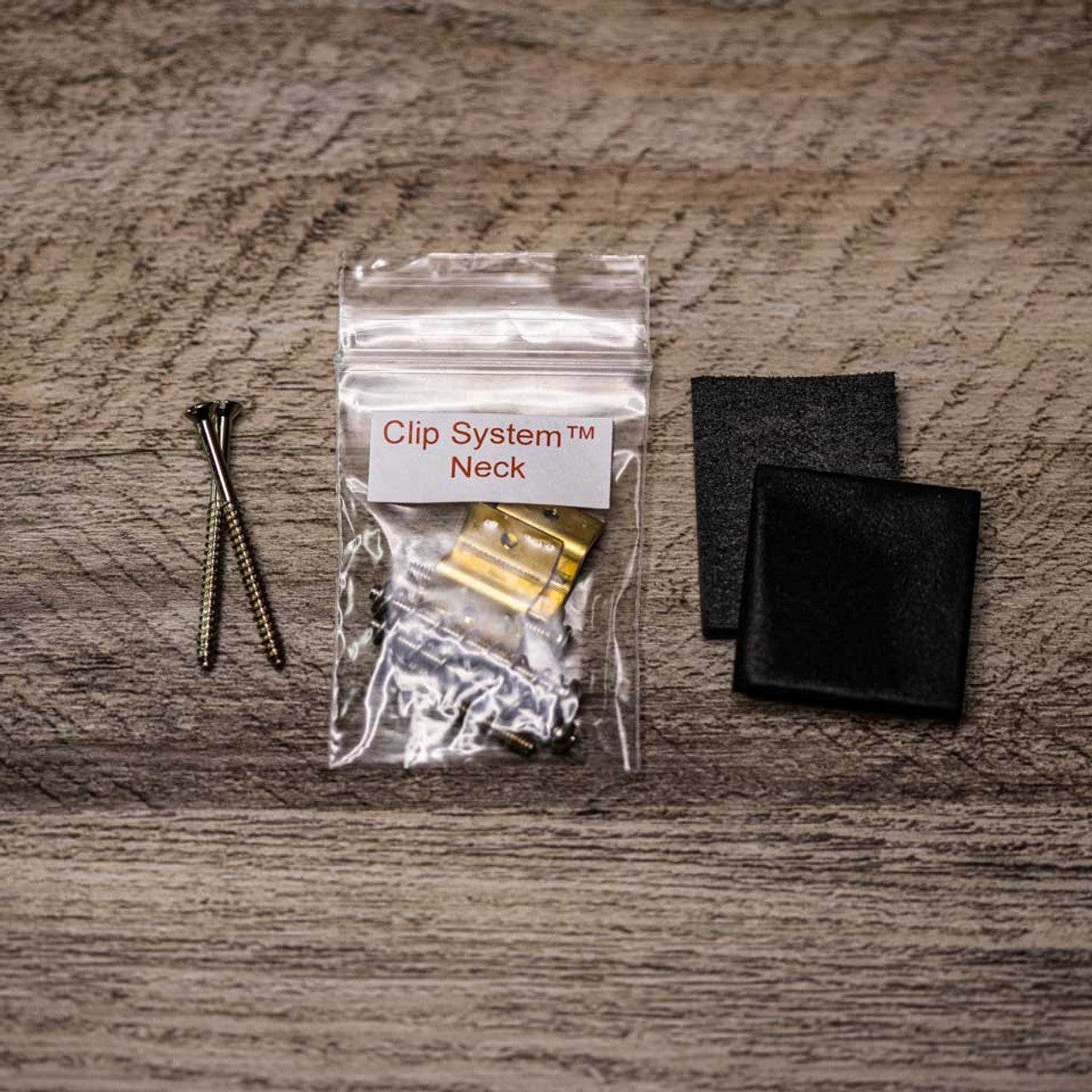

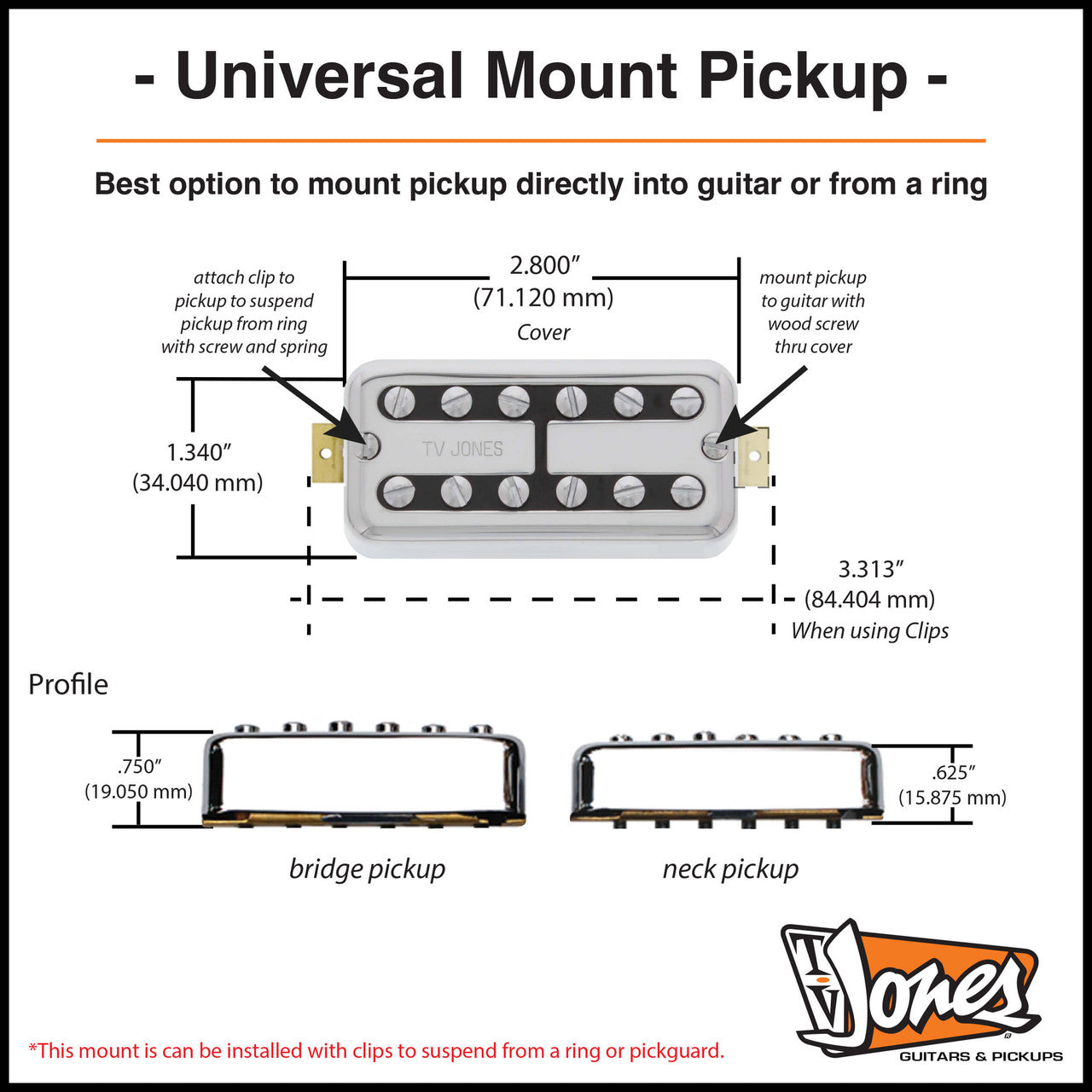

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)

Wiring Notes

The Super'Tron is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.

Splitting coils is generally not recommended for the Super'Tron due to low coil output but some say it works well due to higher coil inductance (because of the steel blades). 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.

Features:

• Free shipping, delivery within 2 to 3 business days or less.
• We are an authorized TV Jones dealer.
• Tom's spin on the '60s Super'Tron
• Mellower and more musical than the original
• Blade elements promise greater inductance and volume retention for bends
• Low output — reveals the character of your amp
• Suits a wide range of musical styles
• Smooth, jazzy midrange
• Delicate bite
• Sweet breakup
• Punchy attack
• Position: neck
• DC resistance: 4.0k
• Inductance: 1.8H
• Ships with 4-conductor wiring — ready for standard 2-conductor connections
• Due to the Super'Tron's low output, coil splitting is not recommended

Attributes

• Color: Nickel

Technical Specifications

• # of Strings: 6
• Position: Neck
• Pickup Type: Humbucker
• Active/Passive: Passive
• # of Conductors: 4
• Quantity: Single
• Magnet Material: Alnico
• DC Resistance: 4.0k
• Format: Filtertron
